SMIT Plug Valve Screwed End

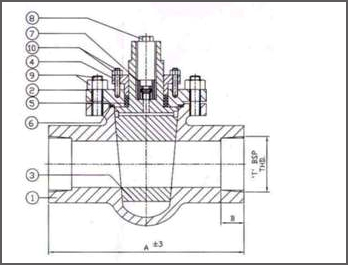

  Drawing





SR.NO

PARTS NAME

MATERIALS

1

BODY

C.I. IS 210 Gr.FG 200

2

COVER

C.I.   IS  210    Gr.FG 200

3

PLUG

C.I. IS  210 Gr.FG 200

4

GLAND

C.I.   IS  210 Gr.FG 200

5

GLAND PACKING

GRAPHITE ASBESTOS

6

GASKET

CAF/S.S.

7

CHECK VALVE

S.S.

8

LUBRICANT SCREW

CARBON STEEL

9

BODY STUD & NUT

CARBON STEEL

10

GLAND STUD & NUT

CARBON STEEL.



CONSTRUCTION:-
SCREWED 150 CLASS SELF LUBRICATED TAPERED PLUG TYPE, WRENCH OPERATED PLUG VALVE.

DESIGN & MFG. CODE

MFG.  STD.

INSPECTION & TESTING

API 598

FACE TO FACE

MFG.  STD.
END CONNECTION SCREWED/SOCKET WELD




SIZE

ØNB

A

T NPT

B

15

12.5

85

1/2"

13.9

20

17

90

3/4"

17.3

25

24

110

1"

17.3

32

30

125

1.1/4”

17.3

40

37

140

1.1/2”

18.4

50

49

165

2"

19.2

65

30

183

2.1/2”

22.2

80

37

200

3”

25.4

100

49

255

4"

28.6

  ----------------------------------------------------------------------------------------------------------------------------------------------------
