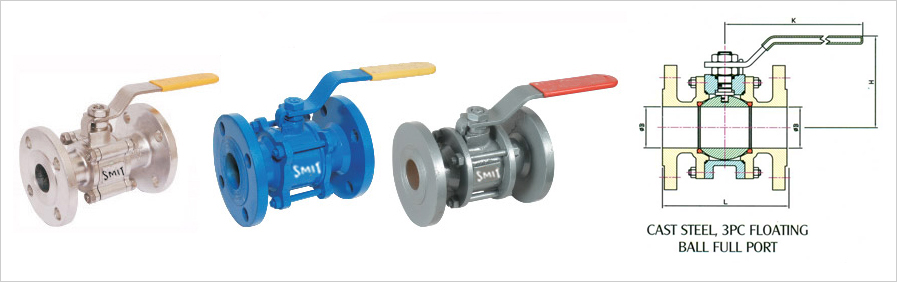

Ball Valve - 3pc F/E


Ball Valve - 3pc F/E


  ----------------------------------------------------------------------------------------------------------------------------------------------------

Features
Swastik Industries Cast Steel Ball Valves have been designed to meet the requirements BS 5351/ASME B 16.34 / API 6D / API 608 / MSS SP 72
Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / API 6D / DIN
End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
Butt weld end dimensions conform to ASME B 16.25
Fire tested design to API 607 / API 6FA / BS 6755-II
Flexible lip seats compensate for wear and changes in pressure
Blow out proof stem construction
Antistatic devices ensure electrical continuity between ball, stem & body
Triple stem sealing
ISO 5211 top pad for simplified gear/actuator mounting Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312

----------------------------------------------------------------------------------------------------------------------------------------------------
Options
One, two or three piece construction
For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available Locking arrangement
Gear, Electrical, Hydraulic or Pneumatic actuator available
Soft seats are recommended for service temperature up to 260o C and for higher temperatures a metal to metal seating shall be offered

  Materials

Part Name Material Option
Body ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Side Piece ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Ball ASTM A 351 CF8 / A 351 CF8M / A 182 F304 / A 182 F316 / A 182 F 6a
Body Seal PTFE / Graphoil / Spiral Wound SS 316 with Graphoil
Seats PTFE / GET / Graphite filled PTFE
Stem ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Bush ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Packing Graphoil / PTFE
Stem Packing Graphite filled PTFE / Graphoil
Gland Nut Stainless Steel
Stem Nut Stainless Steel
Lever Carbon Steel with PVC
Disc Spring Carbon Steel
Studs / Bolts ASTM A 193 B7 / A 193 B7M / A 193 B8 / A 193 B8M / A 320 L7
Nut ASTM A 194 2H / A 194 B7M / A 194 B / A 194 8M / A 194 4/7
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Ball Valve 3PC 150 Class

Size DN
15
20
25
40
50
65
80
100
150
200
L-RF
108
118
127
165
178
190
203
229
394
457
B
12.5
17
24
37
49
64
75
98
148
198
H(approx)
65
70
80
95
110
135
145
170
235
275
K
150
155
160
180
200
225
325
350
500
600
Wt. ( approx ) kg
3
4
5
8
12
22
28
45
83
158
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Ball Valve 3PC 300 Class

Size DN
15
20
25
40
50
65
80
100
150
200
**L,L1-RW,BW
140
152
165
190
216
241
282
305
403
502
B
12.5
17
24
37
49
64
75
98
148
198
H(approx)
70
85
90
105
120
145
160
195
250
290
K
155
160
180
200
225
325
350
500
600
700
Wt. ( approx ) kg
3
5
7
14
17
30
35
58
110
175
