Globe Valve


Globe Valve



Features
Swastik Industries Cast Steel Globe Valves have been designed to meet the requirements BS 1873 /ASME B 16.34
Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / DIN
End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
Butt weld end dimensions conform to ASME B 16.25
Anti-frictional Ball bearings are provided in higher sizes and classes.
Outside screw and yoke construction
All the valves provided with backseat arrangement
The gland is of self aligning two piece type
Deep stuffing box
The Seat-rings are shoulder seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body
The Body to Bonnet joint is a male & female in ASME 150#, 300# & 600# valves and ring joint is used in higher classes
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Options

Angle and Y type design available
For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available
Locking arrangement
Gear, Electrical, Hydraulic or Pneumatic actuator available
Regulating, guided and soft seated plugs available
Bellow Seal for critical service and hazardous media
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  MATERIALS

Part Name Material Option
Body ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M/ A 352 LCB
Bonnet ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A `351 CF8M / A 351 CF3 / A 351 CF3M/ A 352 LCB
Disc@ ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Disc Nut ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L
Stem ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L
Seat Rings@ ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Back Seat Bushing ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L
Gland ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L
Gland Flange Carbon Steel / Stainless Steel
Stem Nut ASTM A 439 Gr.D2 / Al. Bronze
Gland Packing Graphite Asbestos / Graphoil / PTFE
Bonnet Gasket Corrugated Soft Iron / Corrugated SS / Spiral Wound SS 304 with Asbestos or Graphoil / Octagonal Ring
Gland Eye - Bolt & Nut Carbon Steel / Stainless Steel
Cross Bolts & Nuts Carbon Steel / Stainless Steel
Hand Wheel Carbon Steel
Hand Wheel Nut Carbon Steel
Grub Screw Carbon Steel
Studs / Bolts ASTM A 193 Gr B7 / A 193 Gr B7M / A 193 Gr B8 / A 193 Gr B8M / A 320 Gr L7
Nut ASTM A 194 Gr B7 / A 194 Gr B7M / A 194 Gr B8 / A 194 Gr B8M / A 194 Gr 4/7
  ----------------------------------------------------------------------------------------------------------------------------------------------------

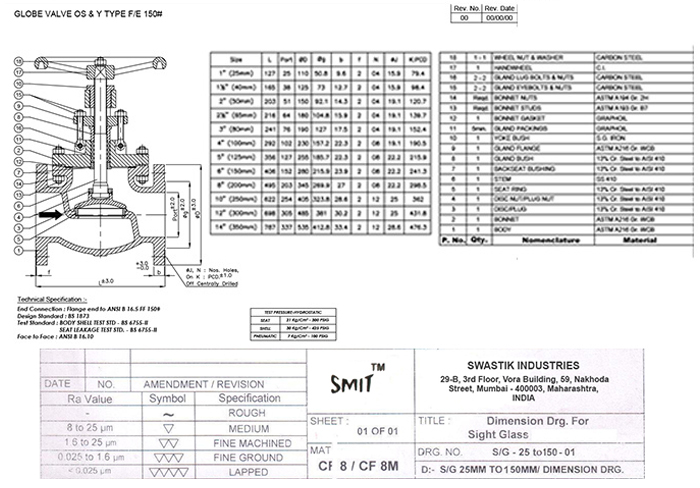

  Globe Valve 150 Class

Size DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
**L,L1-RW,BW 203 216 241 292 356 406 495 622 699 787 914 977 977 1295
H (approx) 330 390 410 475 540 585 725 825 940 1200 1270 1300 1350 1450
ØW 200 250 250 300 350 350 450 500 600 600 650 650 700 750
Wt (approx) kg 23 29 40 59 95 115 178 268 385 540 760 1050 1225 1650
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Globe Valve 300 Class

Size DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
**L,L1-RW,BW 267 292 318 355 400 444 558 622 711 838 863 977 1016 1346
H (approx) 350 425 485 520 565 655 825 920 1155 1250 1295 1340 1385 1475
ØW 200 250 300 300 350 350 500 600 700 700 450* 500* 550* 550*
Wt (approx) kg 30 45 60 83 135 162 265 375 525 765 1100 1470 1680 2475
