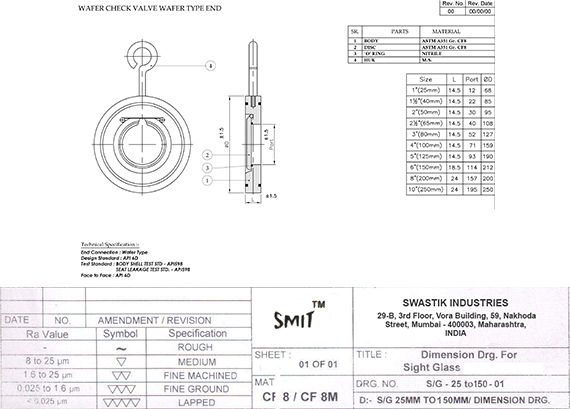

SMIT Wafer Type Check Valve




  VALVE TESTING : API598 / ANSI B16 DESIGN & F TO F DIMENSION : API 6D / ANSI B16
FLANGE STANDARD CONFORMITY : ANSI 150, DIN PN10 & PN16, BS10 TABLE D & E
PRESSURE RATING : PN10 (MAX.)

OPERATING TEMPERATURE RANGE : 25C TO 200C ( DEPENDING ON MOC )
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  MATERIALS

SR. Parts Material Qty.
1 BODY SGI / WCB / CF8 / CF8M 01
2 DISC WCB / CF8 / CF8M 01
3 SEAT EPDM / VITON / NITIRILE / NEOPRENE / PTFE / GFT 01
  ----------------------------------------------------------------------------------------------------------------------------------------------------

MM IN Ã~B Ã~D L (FOR TYPE WCV)
40 1.5 22 81 16
50 2 30 96 16
65 2.5 40 109 16
80 3 52 130 16
100 4 71 160 16
125 5 93 190 16
150 6 114 213 19
200 8 157 270 28
250 10 195 327 28
300 12 230 377 38
350 14 270 437 41
400 16 310 487 51
450 18 360 532 54
500 20 406 585 60
600 24 490 687 70
  ----------------------------------------------------------------------------------------------------------------------------------------------------
