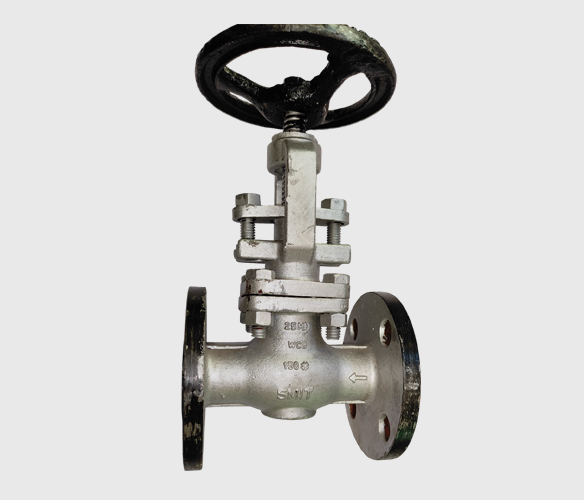

Cast Steel Globe Valves

Globe Valves Features

Special Features of Globe Valve

• Rational structure, reliable sealing & sturdy.
• Construction to ensure excellent performance.
• Anti-friction bearings are provided in higher sizes and classes.
• Universal trim: 13Cr stem, wedge in CA 15 or 13% Cr faced is also available.
• Our globe Valves are heavy duty, outside screw & yoke type, bolted bonnet, rising stem with rising hand wheel.
• Straight through bore design assures streamlined, minimum turbulence, less erosion, lower pressure drop, & resistance to flow.
• Deep stuffing box.
• The Seat rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. Integral seat ring provides in SS valves.
• Back Seat arrangement to provide isolation of Stuffing Box for On-Line serviceability.
• Excellent sealing against increased line pressure.

Special Option of Globe Valve

• Locking arrangement.
• Valve Bypass arrangements is optionally available.
• Different types of operating selections are available in Gear, Electrical, Hydraulic or Pneumatic actuator, and Lever or gear with chain operated.
• For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364.
• Angle and Y type design..
• Spiral wound Gasket for critical service and hazardous media.
• Regulating, guided and soft seated plug available. Quick Lead Times.

Globe valves are adequate for all service media. Valves are marked with flow direction since they are recommended to install with flow and pressure under the disc. It can also be installed in reverse condition depending upon the conditions. The globe valve is generally faster to operate due to less travel

Materials

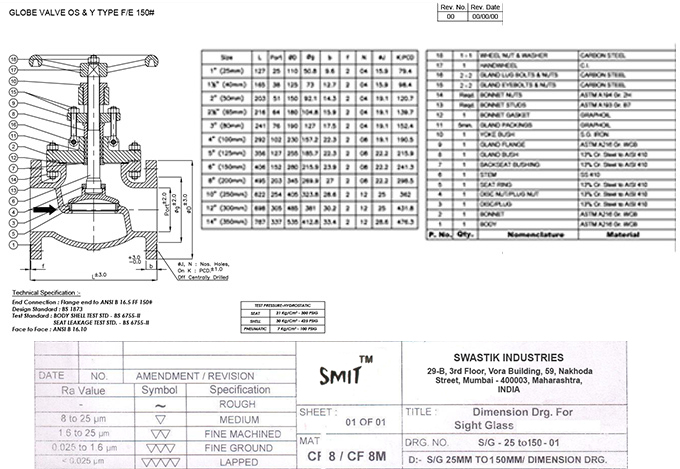

Globe Valve 150 Class

Globe Valve 300 Class
