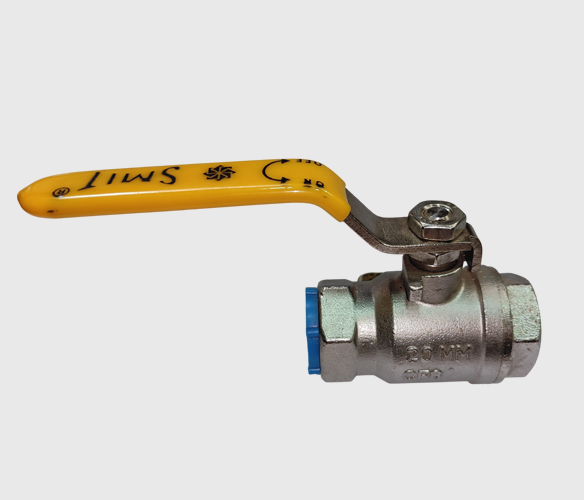

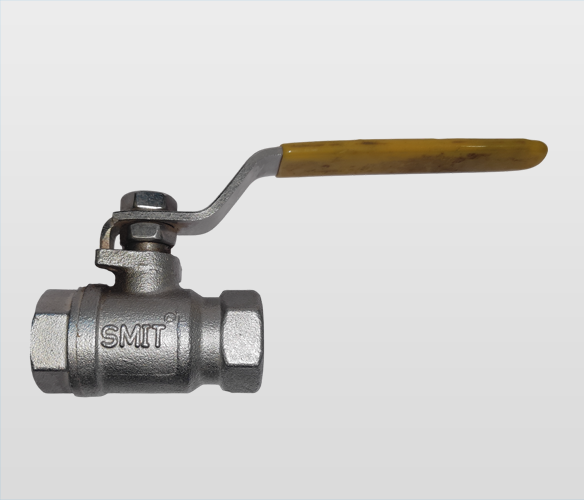

S S Ball Valves 1pc (Screw End)
Construction
- 1 Piece Full Bore, Blow Out Proof Stem Floating Ball, Fire /Non Fire Safe Design
Manufacturing Standard
Testing Standard
Face To Face
End Connection
- Screwed Ends to BSP / BSPT / NPT FEMALE Threads.
- Socket Weld Ends to ANSI-B-16.11
Materials
| Part Name |
Material Option |
| Body |
ASTM A351 CF8 / CF3 / CF8M / CF3M / ALLOY 20 / HAST B / HAST C / ASTM A216 Gr. WCB / IS 210 Gr. FG 200 / 220 |
| Body Connector |
ASTM A351 CF8 / CF3 / CF8M / CF3M / ALLOY 20 / HAST B / HAST C / ASTM A216 Gr. WCB / IS 210 Gr. FG 200 / 220 |
| Connector Seal |
PTFE / GFT |
| Ball Seat |
PTFE / GFT |
| Ball |
AISI304 / AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C |
| Stem |
AISI304 / AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C |
| Stem Seal |
PTFE / GFT |
| Gland Packing |
PTFE |
| Gland |
AISI304 / AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C |
| Gland Nut |
SS-304 |
| Lever |
SS-304 / MS Cd. Plated |
| Lever Nut |
SS-304 / MS Cd. Plated |
| Lever Sleeve |
PVC |
Ball Valve 1PC S/E
