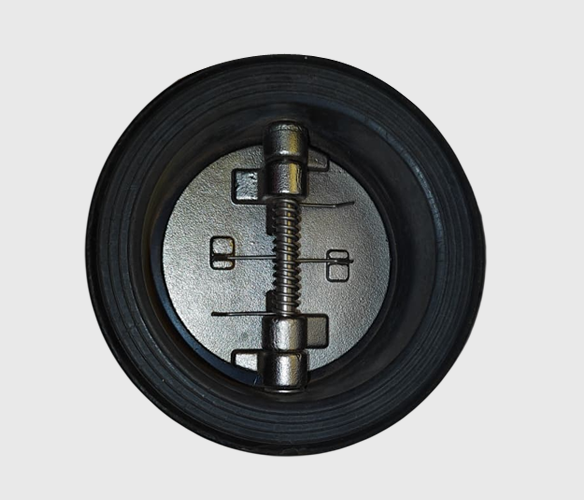

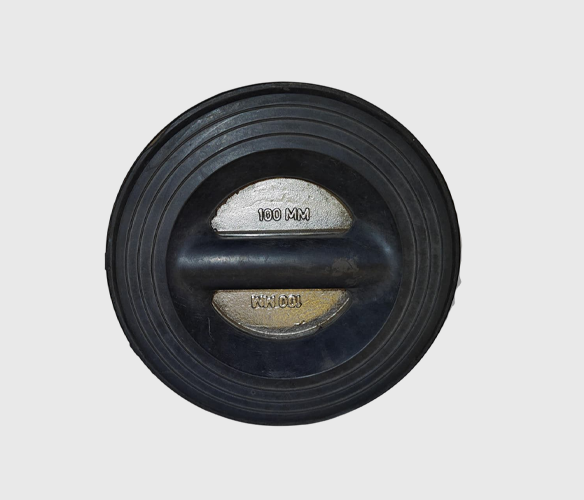

Dual Plate Check Valve Manufacturers In India
- Available Sizes:-50mm to 300mm
- Design Standard:-As per API 594.
- Temperature Rating: -20°C to 80°C
- End Connection:- Wafer Flangeless
- Inspection and Testing Standard:-As per API 598.
- Recommended for both horizontal & vertical installations.
- Installation: - For Flanges drilled as per ANSIB 16.5, DIN 2632/2633 and BS10 Table.
Material Specification
| SR NO. |
PART |
MOC |
| 1 |
Body |
IS 210 Cast Iron Grade 220 |
| 2 |
Disc |
IS 210 Cast Iron Grade 220 (Epoxy Powder Coated) |
| 3 |
Seat |
Nitrile Rubber |
| 4 |
Shaft |
EN8 (Carbon Steel) |
| 5 |
Spring |
SS 304 |
| 6 |
Bush |
Nylon |
Testing Data
Hydraulic Test:-Body-15KG/CM2
Seat- 11KG/CM2

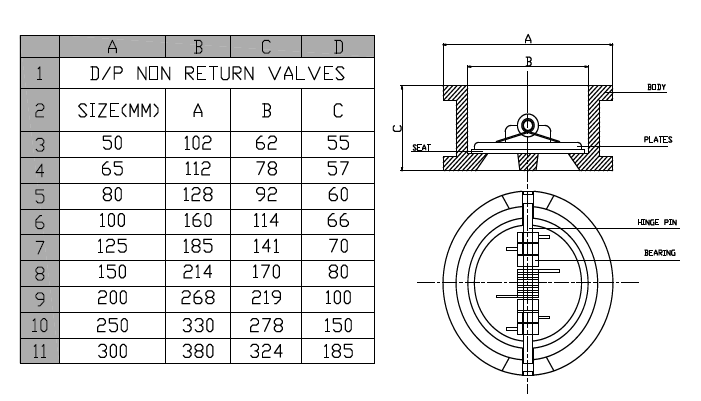

Dimensional Details
- All Dimensions are in mm.
- Dimensions and design subject to change without notice in course of product development.
