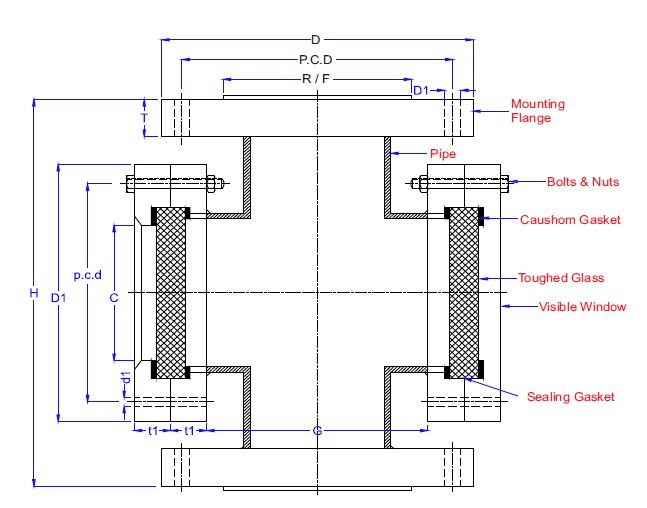

| SIZE | 1/2" | 1" | 1.5" | 2" | 3" | 4" | 6" |
|---|---|---|---|---|---|---|---|
| Flange To Flange (Total Height) | 130 | 160 | 195 | 230 | 308 | 350 | 350 |
| PCD | 60.5 | 79 | 98 | 119 | 151 | 190 | 241.5 |
| OD of Flange | 89 | 113 | 125 | 150 | 189 | 227 | 280 |
| Thickness of Flange | 11 | 11 | 11.5 | 13.5 | 14.5 | 15 | 16.8 |
| Toughened Glass (mm Thick) | 50 x 8 | 59 x 8 | 79 x 12 | 89 x 12 | 123 x 12 | 125 x 15 | 180 x 15 |
Dimensions and other engineering data are subjected to change without notice.
