S S Ball Valves 3pc - SE S S Ball Valves 3pc - SE

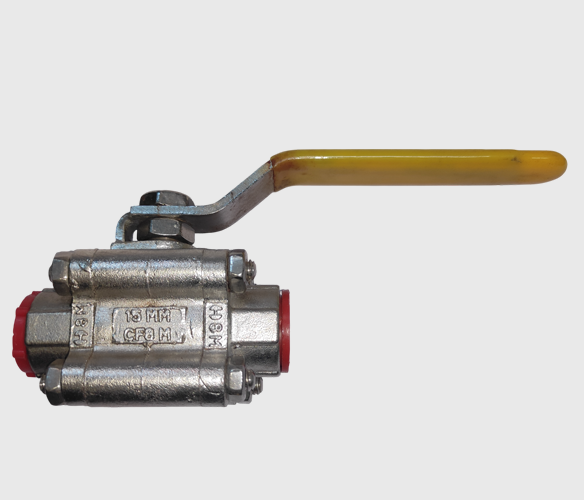

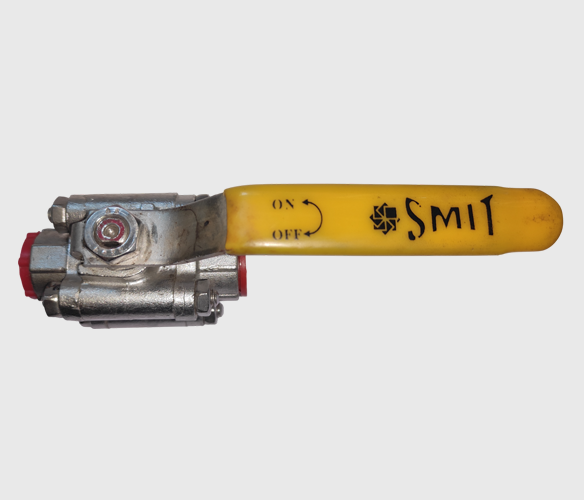

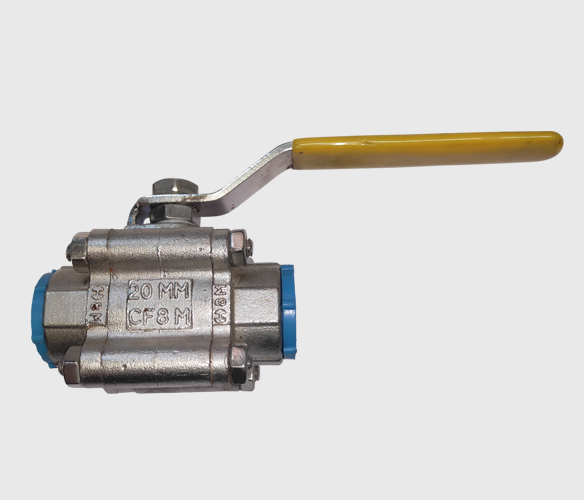

S S Ball Valves 3pc - SE

S S Ball Valves 3pc - SE Manufacturers In India

Features

  • Construction : 3 Piece Full Bore, Blow Out Proof Stem Floating Ball, Fire /Non Fire Safe Design
  • Manufacturing Standard : Bs-5351
  • Testing Standard : Bs-5146
  • Face To Face : As Shown
  • End Connection : Screwed Ends To Bsp / Bspt / Npt Female Threads.
    Socket Weld Ends To Ansi-B-16.11

Drawings

S S Ball Valves 3pc - SE

3PC Design Full Bore Ball Valve Screwed End


Part Name Material Option
Body ASTM A 351 CF8 / CF3 / CF8M / CF3M / ALLOY 20 / HAST B / HAST C / ASTM A 216 Gr. WCB / IS 210 Gr. FG 200 / 220
Body Connector ASTM A 351 CF8 / CF3 / CF8M / CF3M / ALLOY 20 / HAST B / HAST C / ASTM A 216 Gr. WCB / IS 210 Gr. FG 200 / 220
Body Seal PTFE / GFT
Ball Seats PTFE / GFT
Ball AISI 304 / AISI 316 / AISI 304L / AISI 316L / ALLOY 20 / HAST-B / HAST-C
Stem AISI 304 / AISI 316 / AISI 304L / AISI 316L / ALLOY 20 / HAST-B / HAST-C
Stem Seal PTFE / GFT
Gland Packing PTFE
Gland AISI 304 / AISI 316 / AISI 304L / AISI 316L / ALLOY 20 / HAST-B / HAST-C
Gland Nut SS-304
Lever SS-304 / MS. Cd. PLATED
Lever Nut SS-304 / MS. Cd. PLATED
Body Stud SS-304 / ASTM A 193 Gr. B7
Body Nut SS-304 / ASTM A 194 Gr. 2H
Lever Sleeve PVC

Ball Valve 3PC SE

Size DN ØB L CS CLH CL ØS DT
15 12.5 65 35 50 110 1/2" 13.5
20 17 75 40 55 110 3/4" 14
25 24 85 42 60 135 1" 17.5
40 37 105 70 95 220 1.1/2" 18.5
50 49 125 85 100 260 2" 19.5
